vertical turbine pump

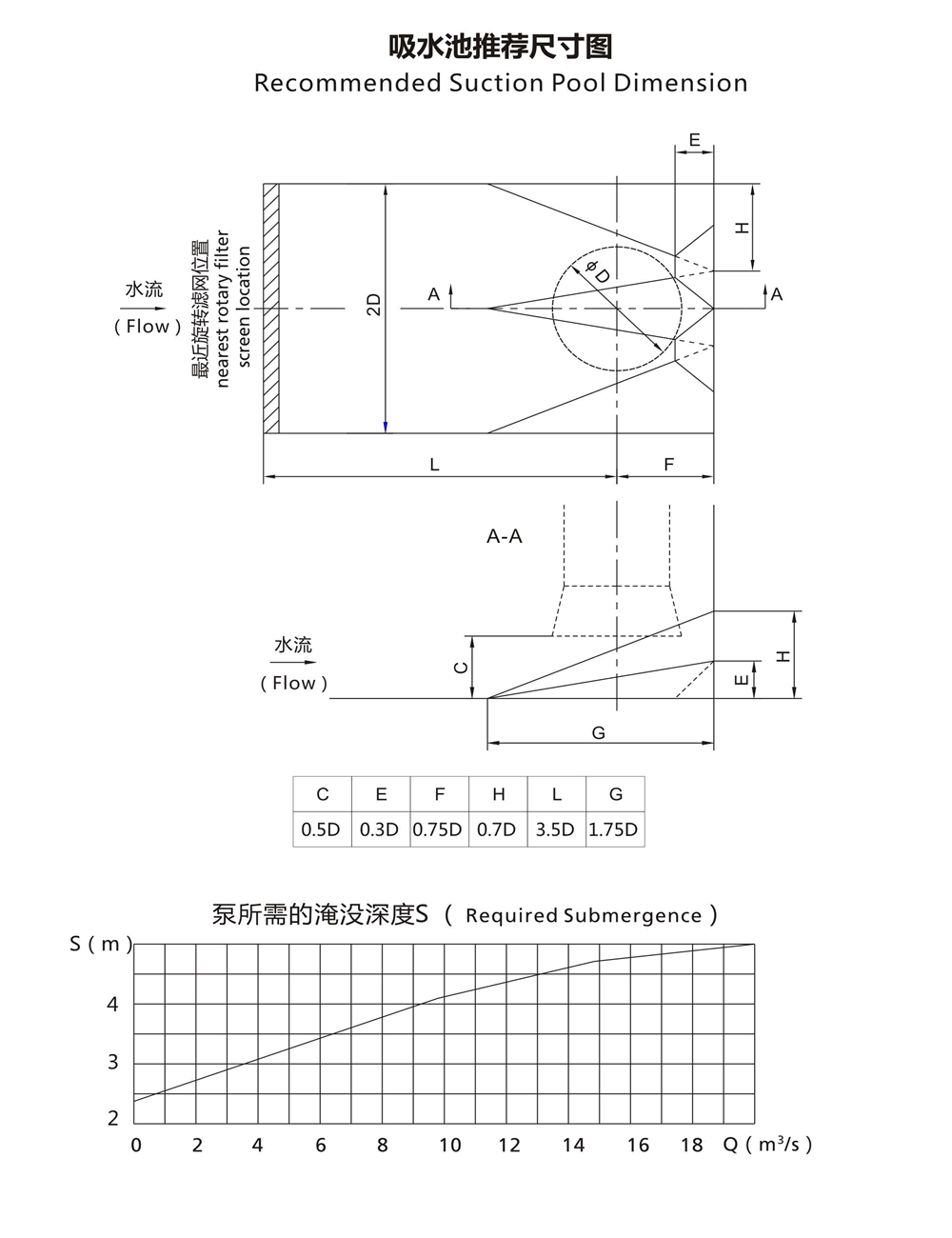

Recommended Dimension and Submergence Depth of HL Vertical Long Axis Oblique Flow Pump Sump

date:2021/1/15 11:35:56 source: visits(


Recommended size and submergence depth of HL vertical long-axis oblique-flow pump suction tank: HLB, HLBK, HLKT, HLBS, HLKS, vertical long-axis pump, long-axis oblique-flow pump, vertical oblique-flow pump, long-axis pump suction tank, vertical long-axis pump suction tank recommended size and submergence depth required by the pump, for reference only, subject to the actual object!
